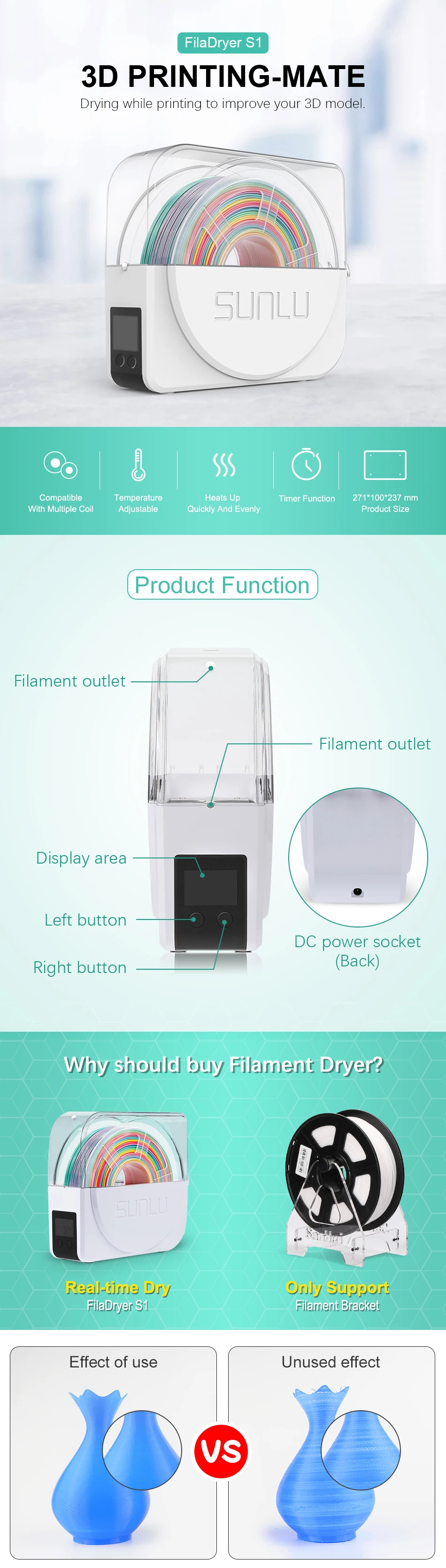

Description
|
|
|
|
SUNLU 3D Prinritng Mater Dryer Box
1. LCD Display: 2-inch LCD display screen, displaying temperature and time.
2.Dual temperature probes to measure the temperature of the cabinet and heating plate.
3.Wrapped baking, more uniform heating, better baking effect.
4.Heating temperature adjusted: which is convenient for customers to use at different temperatures (35℃~55℃ range)
5.Timing function: set heating timing, set time, enter the standby state, safe and secure
Parameter
Name: S1 Filament Dryer Box
Color: White
Temperature range: 35-55℃
Plug: we will according your country choose plug
Filament Diameter: 1.75mm/2.85mm/3.00mm
Operation guide
1. Power on:
Plug the 24V, 2A power adapter that comes with this product into the mains socket first, and then connect the DC cable to the DC power socket of the drying oven. The drying box is connected to the power supply,
Before any key operation, the drying oven is in the standby state.
2. Consumables loading:
Put the coiled consumables into the drying box, pull the thread from the outlet of the drying box, close the lid of the drying box, and press the left or right button at will to enter the drying box.
Into a dry state. The drying oven heats and dries consumables according to the default setting (50°C).
3. Personality settings:
A. Add and subtract temperature: Users can adjust the temperature of the drying box according to factors such as the material of the consumables, the ambient temperature, and the humidity. It is recommended to bake for more than 3 hours, and then
Print, the effect is better. When the drying oven is in the dry state, press the left button to decrease the temperature, and press the right button to increase the temperature. When the setting is completed, stop for about 3 seconds, the drying oven
It is automatically saved and switched to the measured temperature interface. Temperature adjustment range: 35℃~55℃. The measured temperature is displayed as PV, and the set temperature is displayed as SV.
B. Appointment drying: When the drying oven is in the dry state, long press the left button for about 3 seconds to enter the appointment drying function, and the display is: SV Time
0:00 (time setting, 0 hour, 0 minute, note: every time you enter the time setting, the time is reset to zero, starting from 0:00) Short press the left button to decrease the time, short press the right button to increase
Time; each time you short press, the time will increase or decrease by 30 minutes. The time setting range is 0:00 to 9:30. After setting, you need to press and hold the left
Press the key for about 3 seconds. When the second indicator starts to jump, the top of the screen displays PV Time. You can release the key to enter the countdown state (note that when the time is set, the second
The clock indicator does not bounce. After the setting is completed, the setting state is exited and the second indicator starts to bounce when it enters the countdown). When the countdown is complete, do
The drying box automatically starts heating and drying.
4. Use skills:
1: Before printing, it is recommended to bake it for ≥3 hours, and then print, the effect will be better.
2: When the ambient temperature is low and the drying oven does not heat up to the set value, it is necessary to extend the baking time> 1 hour.
3: Better printing effect while baking.
5. Simple troubleshooting:
If you encounter the following phenomena during use, please do a simple treatment as described in the table. If the fault still cannot be eliminated, please contact the place of purchase for troubleshooting.
Trouble phenomenon Trouble cause Trouble shooting method
The LCD screen does not light up. The power adapter is faulty. Replace the power adapter.
Temperature does not rise
The power of the power adapter is insufficient. Replace the power adapter (24V 2A)
The upper cover of the drying box is not covered properly. Close the upper cover of the drying box.
Display fault code ERR
Poor contact of temperature probe Reconnect temperature probe
Poor contact of the heating element terminals Reconnect the heating element cable
